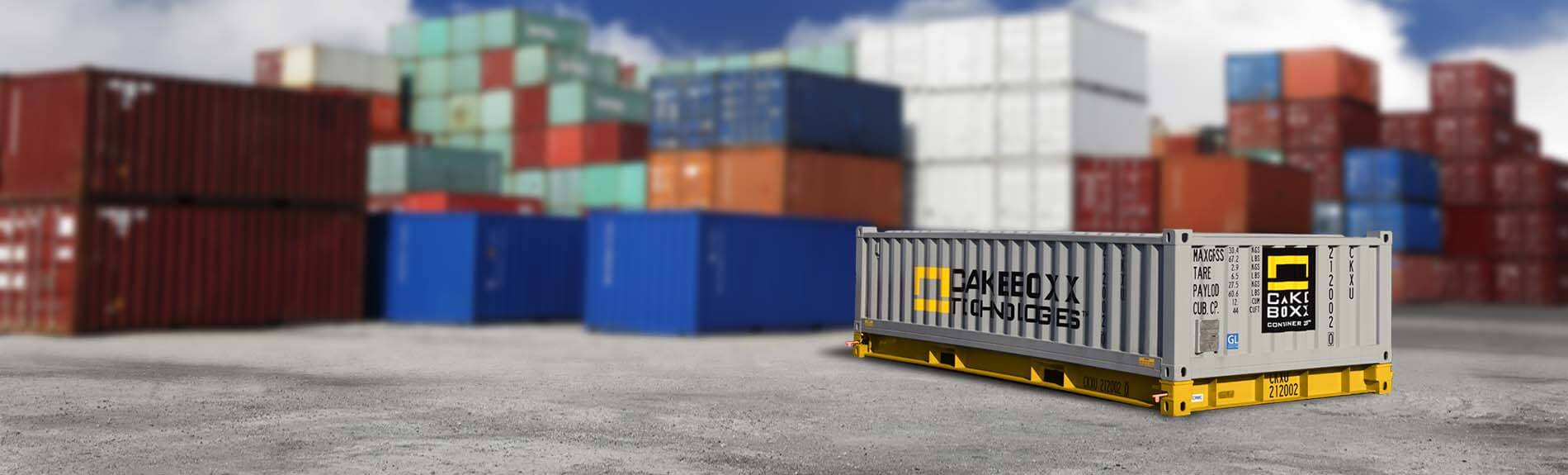

The Half Height Container with CakeBoxx Design

At half the height of a standard high cube container, the low profile ShortBoxx at 4’9” is ideal for high gross weight, low volume cargos such as steel, copper or aluminum ingots or long, unwieldy cargos which cannot be end-loaded in standard doored containers.

Play Video

ShortBoxx in Action

Overview

ShortBoxx is the perfect choice for liquid or granular cargo and chemicals shipped in tanks, drums, barrels, or Intermediate Bulk Containers (IBCs) that need to be carefully secured and cannot be stacked two-high.

These cargos can be safely secure and snug between the top of the lid and the floor, preventing any possible toppling or shifting in transit. Two ShortBoxx containers can also be safely and efficiently stacked, maximizing product haulage potential but with the same footprint as a standard container.

ShortBoxx comes as standard in 20’ length. Other lengths and custom solutions are available on request.

All features, including dimensions, capacities, fitments, and finishes, can be fully tailored to your specific requirements.

Specifications (20'x8'x4'9'' half-height, flat floor model)

EXTERNAL DIMENSIONS
LENGTH

6,058mm / 19' 10.5"

WIDTH

2,438mm / 8’

HEIGHT

1,450mm / 4′ 9″ mm

INTERNAL DIMENSIONS
LENGTH

5,770mm / 18′ 11.2″

WIDTH

2,152mm / 7′ 1"

HEIGHT

1,022mm / 3′ 4.2″

LOAD AND VOLUME CAPACITY
MAX. GROSS WEIGHT

32,500kg / 71,650lbs

TARE WEIGHT

2,800kg / 6,180lbs

MAX. PAYLOAD

27,680kg / 61,020lbs

INTERNAL CUBIC CAPACITY

12.6m3 / 444ft3

STACKING LOAD TEST

86,400kg / 190,480lbs

LID WEIGHT

1,100kg / 2,425lbs

Unique two-piece ‘deck and lid’ container design
20′ Length (others available)
4’9 height
Customizable Perimeter Tie Down System (PTS) for securing even the most awkward shaped goods
Simplified Vertical Locking System for reliability, ease of use and maintainability
Insulated or non insulated
Available with or without access panels
Steel or plywood floor
Flat or recessed floor
Corner guides, fork pockets in lid and other options available.
