CakeBoxx 20ft

The CakeBoxx 20ft Container Integrates Seamlessly into the Supply Chain

Dimensionally identical to a standard ISO container, the CakeBoxx 20ft also has the same load capacities, making it the perfect choice for optimizing regular supply chain operations safely and efficiently.

Play Video

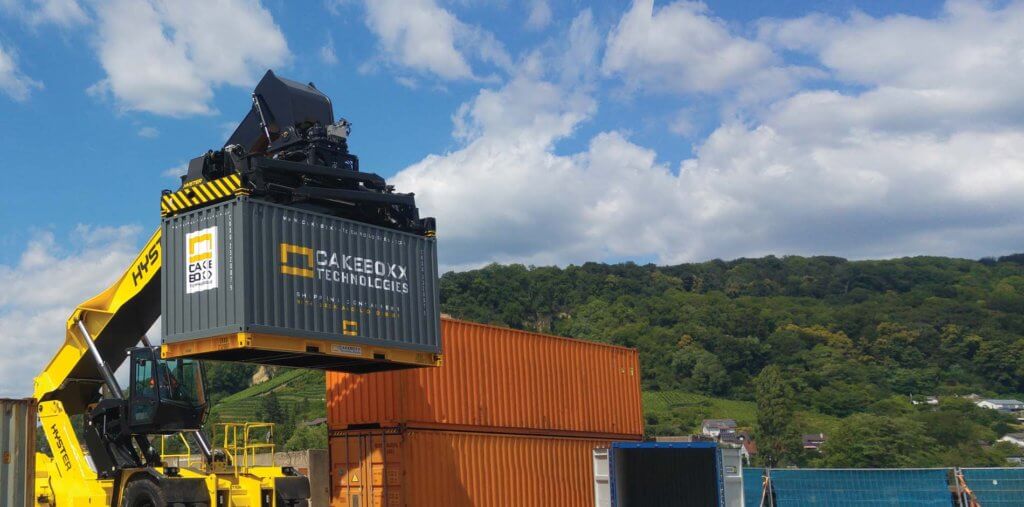

CakeBoxx 20ft in Action

Overview

The CakeBoxx 20ft shipping container integrates seamlessly into all intermodal processes, including stacking, storage, terminal transfers and ship, rail and truck haulage.

The unique CakeBoxx deck and lid design seals and secures the container contents entirely, making unauthorized access and theft virtually impossible.

It comes as standard in high cube 9’6″ height. Other heights available on request. Options for the CakeBoxx 20ft container include various flooring types, deck variants and insulation options. A CoilBoxx™ variant is also available for the shipment of coiled cargoes such as steel and aluminum.

All features, including dimensions, capacities, fitments, and finishes, can be fully tailored to your specific requirements.

Specifications (20'x8'x9'6'' high cube, flat floor model)

EXTERNAL DIMENSIONS
LENGTH

6,058mm / 19' 10.5"

WIDTH

2,438mm / 8’

HEIGHT

2,896mm – 9′ 6″ mm

INTERNAL DIMENSIONS
LENGTH

5,770mm / 18′ 11.2″

WIDTH

2,152mm / 7′ 1"

HEIGHT

2,369mm / 7′ 9.2″

LOAD AND VOLUME CAPACITY
MAX. GROSS WEIGHT

32,500kg / 71,650lbs

TARE WEIGHT

3,450kg / 7,610lbs

MAX. PAYLOAD

28,300kg / 62,390lbs

INTERNAL CUBIC CAPACITY

29.4m3 / 1,038ft3

STACKING LOAD TEST

86,400kg / 190,480lbs

Unique two-piece ‘deck and lid’ container design
20′ Length
9’6 height as standard (others available)
Customizable Perimeter Tie Down System (PTS) for securing even the most awkward shaped goods
Simplified Vertical Locking System for reliability, ease of use and maintainability
Insulated or non insulated
Available with or without doors and access panels
Steel or plywood floor
Flat or recessed floor
Corner guides, fork pockets in lid and other options available.
